RQ350
Manufacturer: Delta-Q
| Power supply AC: | 85-270 VAC |
|---|---|
| Output current 12V: | 15A (220W) |
| Output current 24V: | 13A (350W) |
| Output current 36V: | 10A (350W) |
| Output current 48V: | 7,5A (350W) |
DESCRIPTION

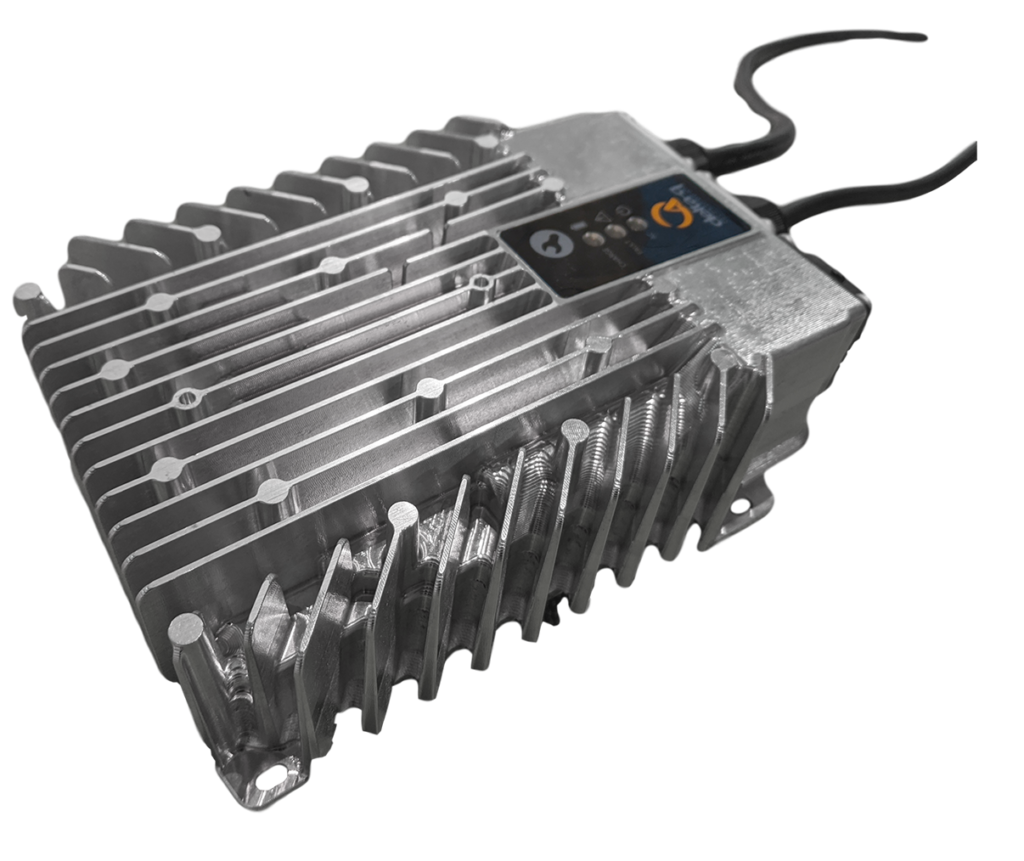

The RQ Series is a compact, ruggedized and fully-sealed charging series that is setting a higher quality standard and customer experience in the low-power battery charger market.
IP66 and 67-rated to protect against water and dirt ingress.
Designed to withstand automotive shock and vibration.
The RQ Series has a maximum power output of up to 350 W and 700 W with charging currents up to 13A. Its on-board microprocessor ensures precise charging even at a low state of charge.
Intuitive user interface with three built-in LEDs indicating charging status, errors and faults; A push button to select or change the charge algorithms during machine manufacturing or in the field.
DESCRIPTION
The RQ Series is a compact, ruggedized and fully-sealed charging series that is setting a higher quality standard and customer experience in the low-power battery charger market.
IP66 and 67-rated to protect against water and dirt ingress.
Designed to withstand automotive shock and vibration.
The RQ Series has a maximum power output of up to 350 W and 700 W with charging currents up to 13A. Its on-board microprocessor ensures precise charging even at a low state of charge.
Intuitive user interface with three built-in LEDs indicating charging status, errors and faults; A push button to select or change the charge algorithms during machine manufacturing or in the field.
Power Section
| Power supply AC | 85-270 VAC |
|---|---|
| Output current 12V | 15A (220W) |
| Output current 24V | 13A (350W) |
| Output current 36V | 10A (350W) |
| Output current 48V | 7,5A (350W) |
| Battery Type | Lead-Acid & Lithium |
Mechanics
| Dimensions | 200 x 145 x 60 mm |
|---|---|
| Weight | 1.5 kg |
| Protection | IP66 |
| Cooling | Natural Convection |
Features
| Efficiency | 93% peak efficiency; California Energy Commission (CEC) and Department of Energy (DOE) compliant |
|---|---|
| Safety | CE, UL1564, EN 60335-2-29, AS/NZS60335 (RCM), KC, PSE, UKCA |
| Emissions | All Models: FCC Part 15 / ICES 002 Class B, EN 61000-3-2, EN 61000-3-3, EN 61000-6-3, CISPR 14.1 RQ 350W 36V/48V: UNECE R10 |
| Immunity | All Models: CISPR 14.2, EN 61000-6-2 (Industrial) RQ350W 36V/48V: UNECE R10 |
