CT3.3
Manufacturer: Zivan
| Power supply AC: | 85-270 VAC |
|---|---|
| Output current 58V: | 65A (3300W) |
| Output current 65V: | 65A (3300W) |
| Output current 120V: | 40A (3300W) |
| Aux DC Output : | 500W (optional) |
DESCRIPTION

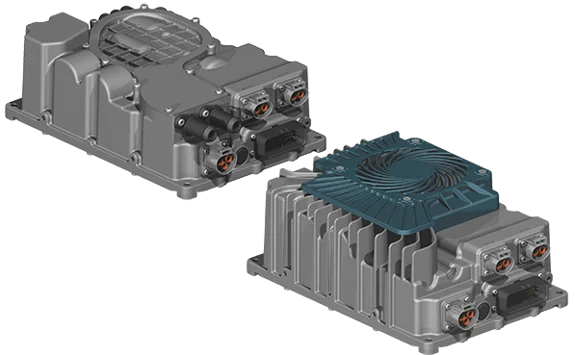

Available in 2 ways - with air or liquid cooling system –, CT3.3 is a concentrate of technology. CT3.3 is characterised on one side by compact design to minimise installation space, and the other also robustness against vibration. Robust and small in size, it is capable of high performance for fast-charging - in typical ZIVAN style.
Wide operating temperature range but also high power density, as well as stackability for scalable power make it a jewel of rechargeable battery technology.
DESCRIPTION
Available in 2 ways - with air or liquid cooling system –, CT3.3 is a concentrate of technology. CT3.3 is characterised on one side by compact design to minimise installation space, and the other also robustness against vibration. Robust and small in size, it is capable of high performance for fast-charging - in typical ZIVAN style.
Wide operating temperature range but also high power density, as well as stackability for scalable power make it a jewel of rechargeable battery technology.
Power Section
| Power supply AC | 85-270 VAC |
|---|---|
| Output current 58V | 65A (3300W) |
| Output current 65V | 65A (3300W) |
| Output current 120V | 40A (3300W) |
| Aux DC Output | 500W (optional) |
| Battery Type | Lead-Acid & Lithium |
Mechanics
| Dimensions (Fan cooled Models) | 300 x 200 x 110 mm |
|---|---|
| Dimenstions (Liquid cooled Models) | 300 x 200 x 100 mm |
| Weight | 5 kg |
| Protection | IP67 |
| Cooling (Fan cooled Models) | Forced convection with variable speed fan |
| Cooling (Liquid cooled Models) | Liquid coolant (50:50% Glycol/Water) |
Features
| Efficiency | 93% peak efficiency, California Energy Commission (CEC) |
|---|---|
| Safety | UL/CSA, CE, UE and FCC residential EMC, UNECE R10/R100, ISO 13766 EMC |
| Environmental | Vibration & shock profile according to non-road and on-road vehicle applications |
