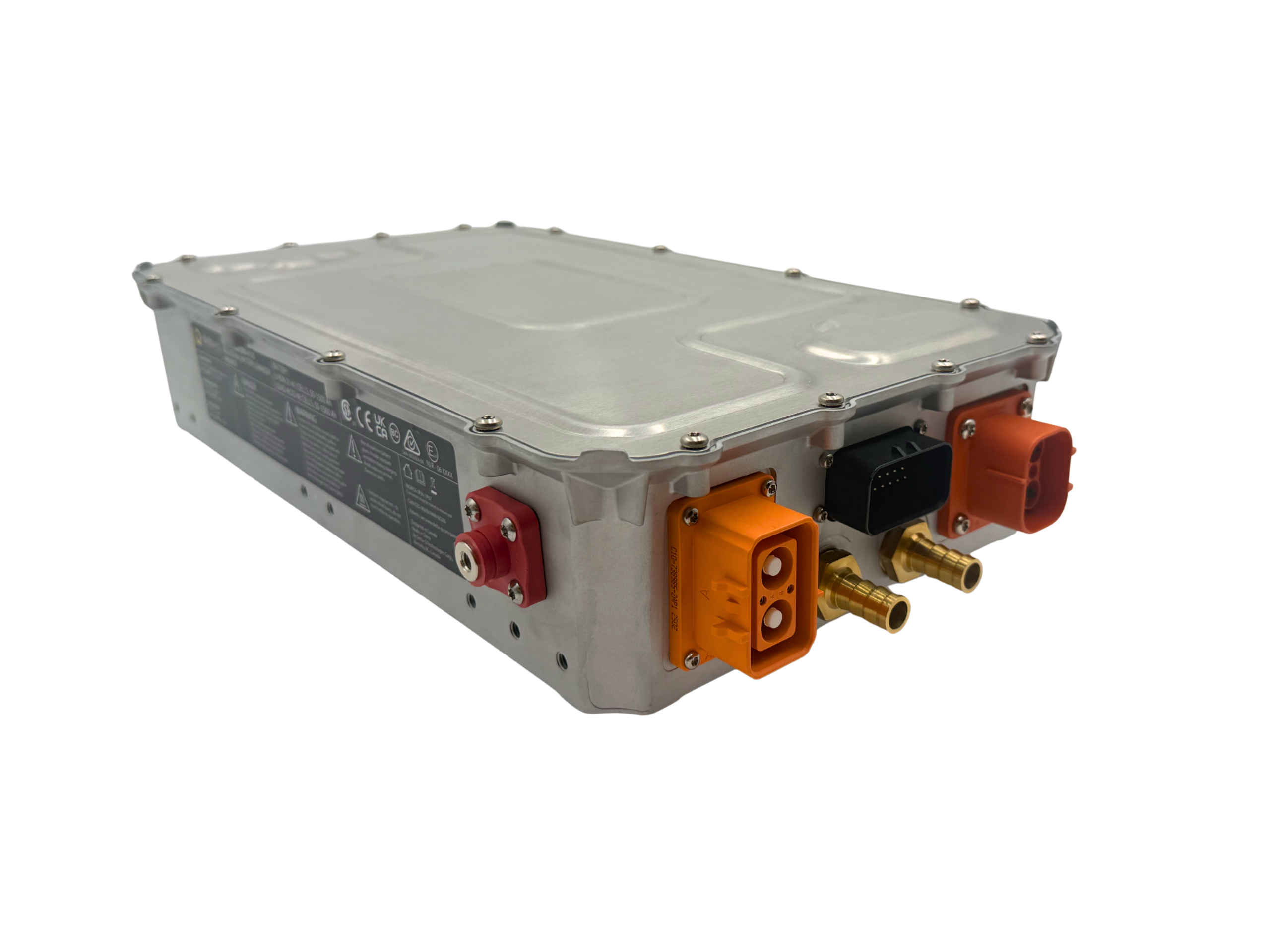

ZQ7200 7.2 kW
Manufacture: Delta-Q
| DC Output: | 80-125 V (7200W) |
|---|---|
| DC-Output: | 250 - 500 V (7200W) |
| DC-Output: | 500 - 1000 V (7200W) |
| AUX DC output:: | 1000 W |
High-Voltage Charging for 100V, 400V, and 800V Battery Systems
The ZQ7200 combines a 7.2 kW battery charger, with integrated 1 kW DC-DC converter, and EVSE communication interface into a compact IP67 liquid-cooled package.
Designed for electric vehicles and mobile machinery, the onboard charging solution supports 100V, 400V, and 800V battery systems.
High-Voltage Charging for 100V, 400V, and 800V Battery Systems
The ZQ7200 combines a 7.2 kW battery charger, with integrated 1 kW DC-DC converter, and EVSE communication interface into a compact IP67 liquid-cooled package.
Designed for electric vehicles and mobile machinery, the onboard charging solution supports 100V, 400V, and 800V battery systems.
Power Section
| AC Input Voltage Range | 90-300 V |
|---|---|
| Output Voltage Range | 80 - 1000 VDC |
| Maximum charging power | 7.2 kW |
| DC/DC Converter Nominal Power Output | 1000 W |
| Battery Type | Lithium Only |
Mechanics
| Dimensions | 432 x 249 x 85 mm |
|---|---|
| Weight | 9.8 KG |
| Cooling | Liquid (50:50% Glycol/Water) |
| Protection | IP66/IP67 |
Features
| Efficiency | ≥94.6% |
|---|---|
| Safety | UL 1564, CSA 22.2 No.107.2, EN IEC 62477-1 |
| Emissions | FCC Part 15 / ISED ICES-002, Class A EN IEC 61000-6-4, EN IEC 61000-3-11/-12 |
| Immunity | EN 61000-6-2 |
Key Benefits
High-Voltage Ready
The ZQ7200 supports nominal 100V, 400V, and 800V battery systems for higher power efficiencies and reduced thermal management.
Reduce Space, Weight, and Cost
The integrated onboard charging system reduces component count, cabling, space claim and weight.
Accelerate OEM Integration
Support for SAE J1939, CANopen, and UDS protocols enables seamless communication with vehicle control units and battery management systems.
