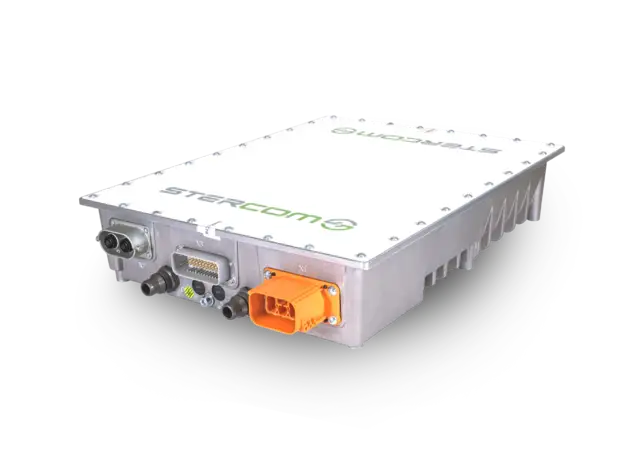

OBC 22 kW
Manufacture: Stercom
| Maximum charging powe: | 22 kW |
|---|
Highlights
- Ultra compact 22 kW OBC with the output versions 450V/70A, 800V/40A, or 850V/32A
- Very efficient switching technology using Silicon Carbide Semi-Conductors
- Identical outline dimensions and plugs of all versions
- Suitable for 12V/24V electronic supply
- AC input power factor > 99 %, very low THD
- Supports AC charging via CCS/Type2 according to EC 61851 as well as Direct AC mode
- Integrated DC charging with EPLC- (Embedded Power Line Communication) charge controller fully compatible with DIN SPEC 70121 and ISO15118
- Very low power consumption in “Sleep Mode”
Highlights
- Ultra compact 22 kW OBC with the output versions 450V/70A, 800V/40A, or 850V/32A
- Very efficient switching technology using Silicon Carbide Semi-Conductors
- Identical outline dimensions and plugs of all versions
- Suitable for 12V/24V electronic supply
- AC input power factor > 99 %, very low THD
- Supports AC charging via CCS/Type2 according to EC 61851 as well as Direct AC mode
- Integrated DC charging with EPLC- (Embedded Power Line Communication) charge controller fully compatible with DIN SPEC 70121 and ISO15118
- Very low power consumption in “Sleep Mode”
Specifications
| Maximum charging powe | 22 kW |
|---|---|
| Voltage range DC Output | 200 -850 V |
The optimized and adaptive charging process
Our ultra-compact Onboard Charger (OBC_22kW) is compatible with all single-phase and three-phase AC charging stations as well as Type 2 wallboxes. The optimized charging process ensures gentle and efficient charging for all common high-voltage batteries across various voltage classes, up to 850V DC. By utilizing the latest Silicon Carbide (SiC) semiconductor technology, we set new standards in efficiency, size, and weight. For very large battery systems, charging power can be scaled up by connecting multiple OBC_22kW units in various parallel modes.
