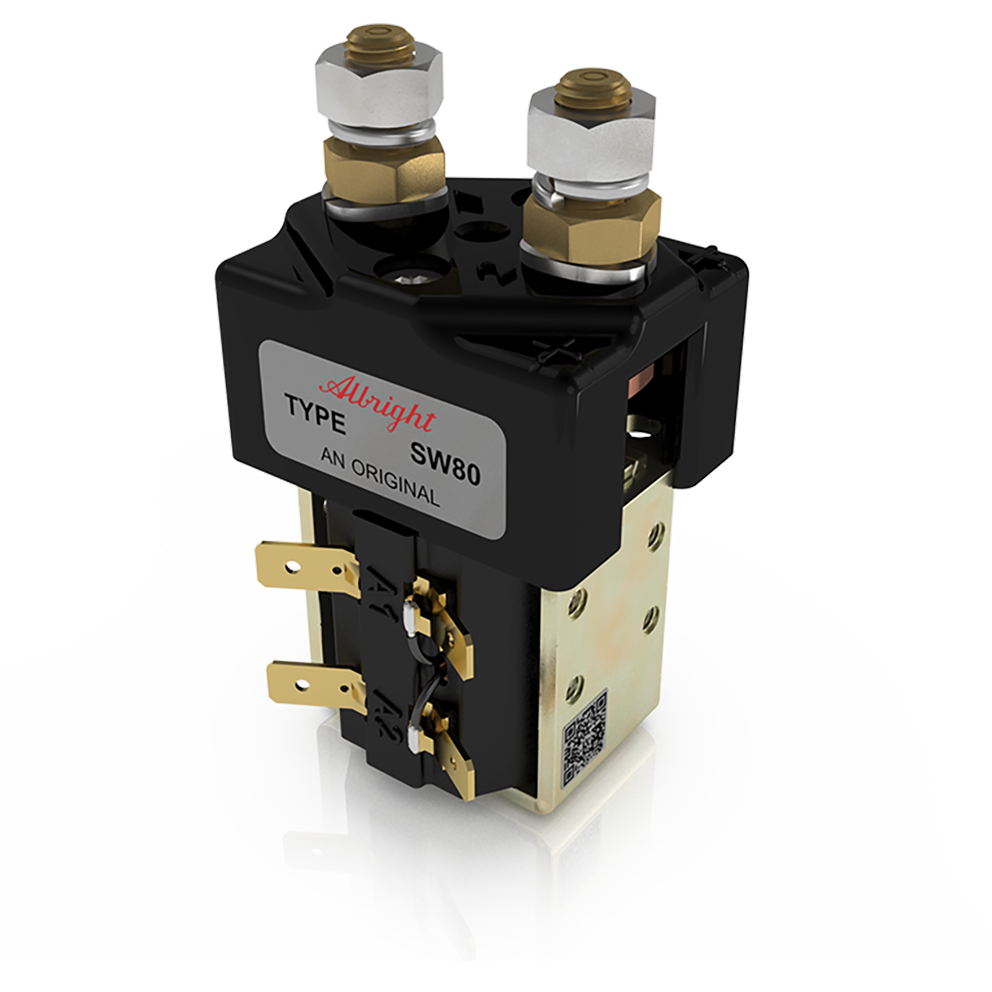

SW80
Manufacturer: Albright
| Contact Voltage: | 12V-96V |
|---|---|
| Coil Voltage: | 6-240V DC |
| Current Rating - Interrupted: | 100A |
| Current Rating - Uninterrupted: | 125A |
| Coil Power Dissipation: | 7-30 W |
| Operating Ambient Temperature: | - 40˚C to + 60˚C |
DESCRIPTION
The SW80 has been designed for direct current loads, including motors as used on electric vehicles such as industrial trucks, and telecom and power distribution applications.
Developed for both interrupted and uninterrupted loads, the SW80 is suitable for switching Resistive, Capacitive and Inductive loads.
The SW80 features single pole double breaking main contacts with silver alloy tips, which are weld resistant, hard wearing and have excellent conductivity.
The SW80 has M8 stud main terminals and 6.3mm spade coil connections. Mounting is via M4 tapped holes or mounting brackets, either supplied fitted, or as separate items.
Mounting can be horizontal or vertical, when vertical the M8 contact studs should point upwards. If the requirement is for downwards orientation we can adjust the contactor to compensate for this.
DESCRIPTION
The SW80 has been designed for direct current loads, including motors as used on electric vehicles such as industrial trucks, and telecom and power distribution applications.
Developed for both interrupted and uninterrupted loads, the SW80 is suitable for switching Resistive, Capacitive and Inductive loads.
The SW80 features single pole double breaking main contacts with silver alloy tips, which are weld resistant, hard wearing and have excellent conductivity.
The SW80 has M8 stud main terminals and 6.3mm spade coil connections. Mounting is via M4 tapped holes or mounting brackets, either supplied fitted, or as separate items.
Mounting can be horizontal or vertical, when vertical the M8 contact studs should point upwards. If the requirement is for downwards orientation we can adjust the contactor to compensate for this.
Power Section
| Intermittent Current Rating 30% Interrupted/Uninterrupted | 185A/230A |
|---|---|
| Intermittent Current Rating 40% Interrupted/Uninterrupted | 160A/200A |
| Intermittent Current Rating 50% Interrupted/Uninterrupted | 140A/175A |
| Intermittent Current Rating 60% Interrupted/Uninterrupted | 130A/160A |
| Intermittent Current Rating 70% Interrupted/Uninterrupted | 120A/150A |
Mechanics
| Dimensions | 50 x 39 x 91 mm |
|---|---|
| Weight | 350-420 g |
| Protection | up to IP66 |
| Cooling | Natural Convection |
Available Options
| General | ○ Auxiliary Contacts ○ Auxiliary Contacts V3 ○ Magnetic Blowouts ○ Magnetic Blowouts (High Powered) ○ Armature Cap ○ Mounting Brackets ○ Magnetic Latching ○ Closed Contact Housing ○ Environmentally Protected IP66 ○ EE Type |
|---|---|
| Contacts | ○ Large Tips ○ Textured Tips |
| Coil | ○ AC Rectifier Board ○ Coil Suppression ○ Flying Leads ○ Junior Power Timer Connector ○ Manual Override Operation ○ M5 Terminal Board ○ Vacuum Impregnation |
