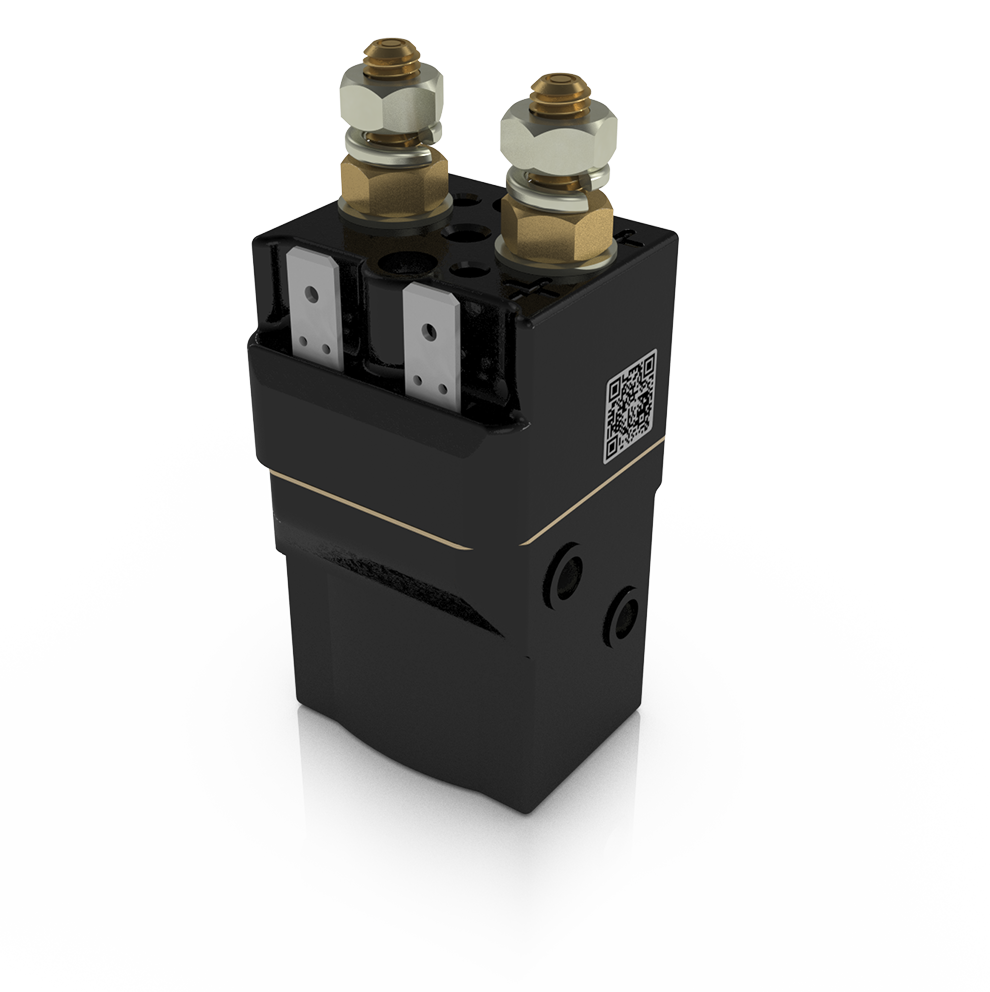

SW60
Manufacturer: Albright
| Contact Voltage: | 12V-120V |
|---|---|
| Coil Voltage: | 6-130V DC |
| Current Rating - Interrupted: | 80A |
| Current Rating - Uninterrupted: | 80A |
| Coil Power Dissipation: | 7-21 W |
| Operating Ambient Temperature: | - 40˚C to + 60˚C |
DESCRIPTION
The SW60 is a miniature series single pole contactor – free standing and compact it is designed to fill the gap between 30 ampere relays and 100 ampere contactors. Devised for both interrupted and uninterrupted loads, the SW60 is suitable for switching Resistive, Capacitive and Inductive loads. Typical applications include switching small traction motors, hydraulic power packs and small electric winch motors.
The SW60 features single pole double breaking main contacts with silver alloy tips, which are weld resistant, hard wearing and have excellent conductivity. The SW60 has M6 stud main terminals and 6.3mm spade coil connections. It can be mounted via M4 tapped holes or mounting brackets – either supplied fitted, or as separate items. Mounting can be on the side or base of the contactor.
DESCRIPTION
The SW60 is a miniature series single pole contactor – free standing and compact it is designed to fill the gap between 30 ampere relays and 100 ampere contactors. Devised for both interrupted and uninterrupted loads, the SW60 is suitable for switching Resistive, Capacitive and Inductive loads. Typical applications include switching small traction motors, hydraulic power packs and small electric winch motors.
The SW60 features single pole double breaking main contacts with silver alloy tips, which are weld resistant, hard wearing and have excellent conductivity. The SW60 has M6 stud main terminals and 6.3mm spade coil connections. It can be mounted via M4 tapped holes or mounting brackets – either supplied fitted, or as separate items. Mounting can be on the side or base of the contactor.
Power Section
| Intermittent Current Rating 30% Interrupted/Uninterrupted | 145A |
|---|---|
| Intermittent Current Rating 40% Interrupted/Uninterrupted | 125A |
| Intermittent Current Rating 50% Interrupted/Uninterrupted | 115A |
| Intermittent Current Rating 60% Interrupted/Uninterrupted | 105A |
| Intermittent Current Rating 70% Interrupted/Uninterrupted | 95A |
Mechanics
| Dimensions | 37 x 28 x 81 mm |
|---|---|
| Weight | 190-218 g |
| Protection | up to IP66 |
| Cooling | Natural Convection |
Available Options
| General | ○ Auxiliary Contacts ○ Auxiliary Contacts - V4 ○ Magnetic Blowouts† ○ Mounting Brackets ○ Magnetic Latching ○ Closed Contact Housing ○ Environmentally Protected IP66 |
|---|---|
| Contacts | ○ Large Tips ○ Textured Tips ○ Silver Plating |
| Coil | ○ Coil Suppression ○ M4 Stud Terminals |
