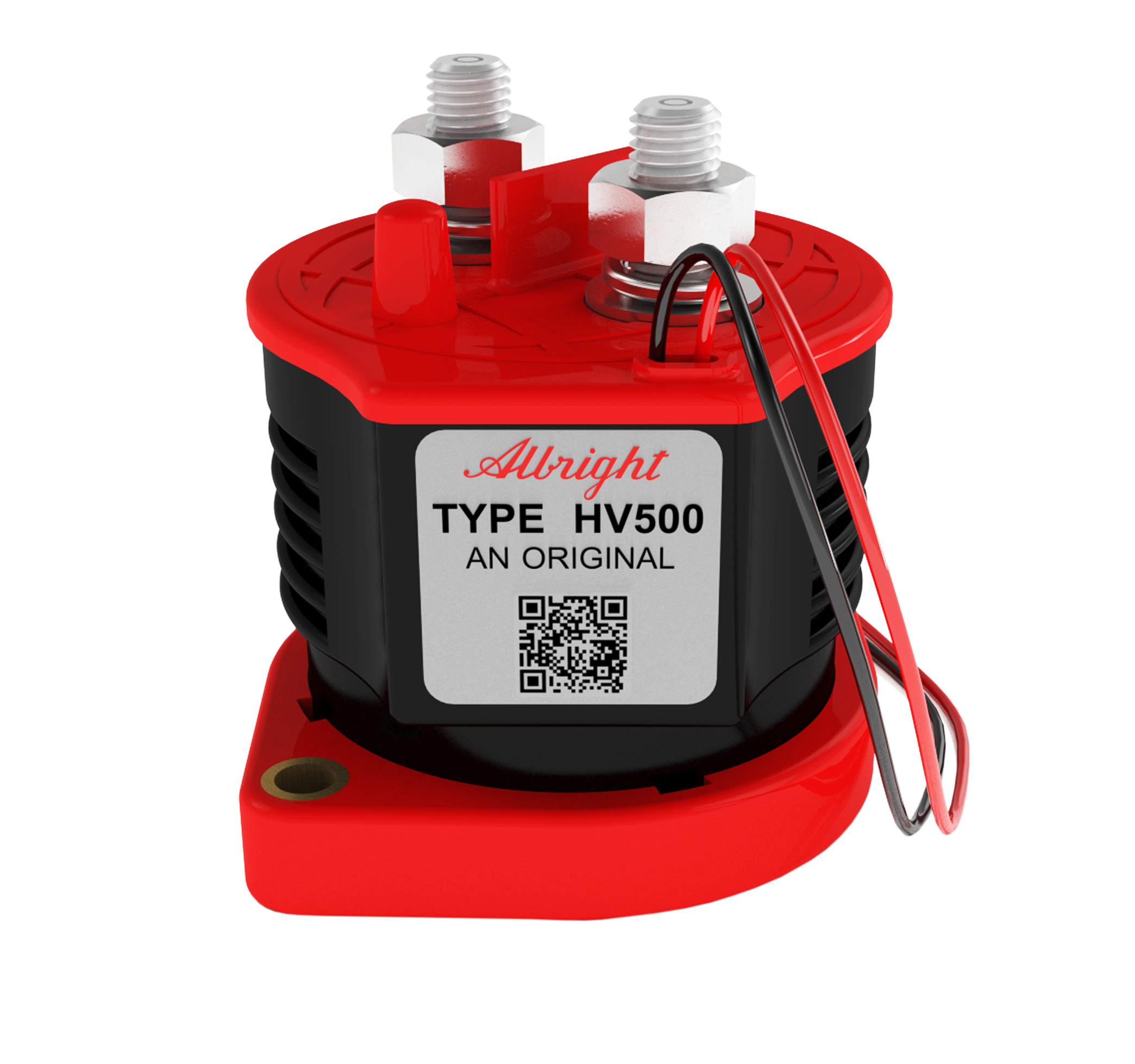

HV500
Manufacturer: Albright
| Contact Voltage: | 12V-1000V |
|---|---|
| Coil Voltage: | 12-96V DC |
| Current Rating - Interrupted: | 250A |
| Current Rating - Uninterrupted: | 500A |
| Coil Power Dissipation: | 3-27 W |
| Operating Ambient Temperature: | - 45°C to + 85°C |
DESCRIPTION
The HV500 is a Single Pole High Voltage Contactor which meets market requirements for innovation and cost efficiency with voltages up to 1000 Volts and full hermetic sealing allowing for durability in extreme environments, or where operating in potentially hazardous conditions. Applications include automotive (vehicle and charging), renewable energy and battery packs.
The HV500 specification features a current thermal rating up to 500 amps, non-polarity sensitive main contacts, Coil Reverse Polarity protection, a variety of coil options including PWM and Magnetic Latching and coil suppression. The HV500 options include Auxiliary Switch (Normally Open, Normally Closed and Mirror), Patent Approved Adjustable Bracket and Silver Contacts.
DESCRIPTION
The HV500 is a Single Pole High Voltage Contactor which meets market requirements for innovation and cost efficiency with voltages up to 1000 Volts and full hermetic sealing allowing for durability in extreme environments, or where operating in potentially hazardous conditions. Applications include automotive (vehicle and charging), renewable energy and battery packs.
The HV500 specification features a current thermal rating up to 500 amps, non-polarity sensitive main contacts, Coil Reverse Polarity protection, a variety of coil options including PWM and Magnetic Latching and coil suppression. The HV500 options include Auxiliary Switch (Normally Open, Normally Closed and Mirror), Patent Approved Adjustable Bracket and Silver Contacts.
Power Section
| Intermittent Current Rating 30% Interrupted/Uninterrupted | 455A/915A |
|---|---|
| Intermittent Current Rating 40% Interrupted/Uninterrupted | 395A/790A |
| Intermittent Current Rating 50% Interrupted/Uninterrupted | 355A/705A |
| Intermittent Current Rating 60% Interrupted/Uninterrupted | 325A/645A |
| Intermittent Current Rating 70% Interrupted/Uninterrupted | 300A/600A |
Mechanics
| Dimensions | 81 x 81 x 71 mm |
|---|---|
| Weight | 400-420 g |
| Protection | IP67 |
| Cooling | Natural Convection |
Available Options
| General | ○ Fully Hermetically Sealed ○ Non-Polarity Sensitive ○ PWM Coil Economiser Option ○ Coil Reverse Polarity Protection (when factory fitted with PWM board) ○ Coil Suppression (when factory fitted with PWM board) ○ Auxiliary Switch - Normally Open or Normally Closed Options ○ Auxiliary Switch - Mirror (Normally Closed) Option ○ Magnetic Latching Option ○ Silver Contacts Option |
|---|---|
| Contacts | ○ Silver alloy tips |
| Coil | ○ Intermittent Duty ○ PWM Coil Economiser ○ Magnetic Latching |
